Arc Flash Suit 40 Cal
Arc Defence™ by HiCare Protectivewear Pvt. Ltd. light weight Arc Flash Protection , introducing advance light weight, breathable 40 Cal Arc flash suits are personal protective garments (PPE) designed to protect individuals working with electrical panels.
When an electrical current crosses an air gap and travels to a different conductor, it causes an arc
flash. Considering this, it is evident that any place where there is a possibility for the electrical
current to escape can experience an arc flash. Electrical workers must wear arc flash suits, which are
full-body protective clothes, to shield them from the heat and energy emitted during an arc flash.
Be sure to choose an arc flash suit When working with electrical equipment or in high arc-risk
environments, use only an arc flash suit that meets these ratings.
This helps to give the user an extra second of protection in order to avoid a secondary explosion or
flash in the working area.
A wearer can use Arc Flash Sui t while working in Transmission Line Maintainance and
LT & HT Panel Maintainance. A 40 Cal Arc Flash Suit is recommended to use for 33 KV maintaince
Application.
Specification of Arc Flash Suit:
• Multi-layer Inherent arc flash Resistance Fabric 500 GSM.
• Garment made of Inherent arc flash resistance fabric along with the zip & velcro closure and
covered with flap.
• Trouser have provision of zipper closure.
• Elasticized side waistband for a better fit & Comfort.
• Sleeve cuffs have adjustable straps with Velcro closure
• Class E Helmet along with the 40-cal rated visor ASTM F 2178 -12
• For high visibility, FR reflective tape applied across the
• shoulder, sleeves, and bottom.
• Throughout the garment's manufacturing, FR thread is employed.
• Various designs and patterns are available to meet your needs.
Features of Arc Flash Suit:
• Provides protection against an ARC Flash's Hazard.
• Full Body Protection
• Comfortable to the user
• The FR Properties will remain constant till the last washing cycle.
• Sewn with FR thread

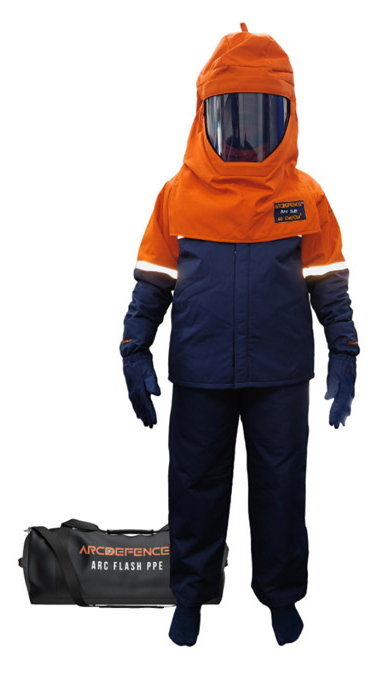

Arc Flash safety Kit Content: Jacket & Trouser, Class E Helmet with Paulson Face Shield, Fabric Gloves and Storage Bag.
How to clean Arc Flash Suit
To ensure the highest level of protection, the PPE should be kept dry and clean. The following
washing instructions are for the fabric part of personal protective equipment (PPE), which should be
separated from the shield and hard hat assembly before washing. The face shield should be
unfastened and removed prior to cleaning in an ultrasonic bath or with mild soapy lukewarm water.
Dry with cleaning paper or lint free cloth.
• The PPE should not be washed in temperatures over 60 ° .
• Tumble dry at normal temperature.
• Do not use chlorine bleaches or detergents containing sodium hypo chloride
• This garment should be washed separately from other fabrics and garments.
• Warm water and wild detergent are recommended.

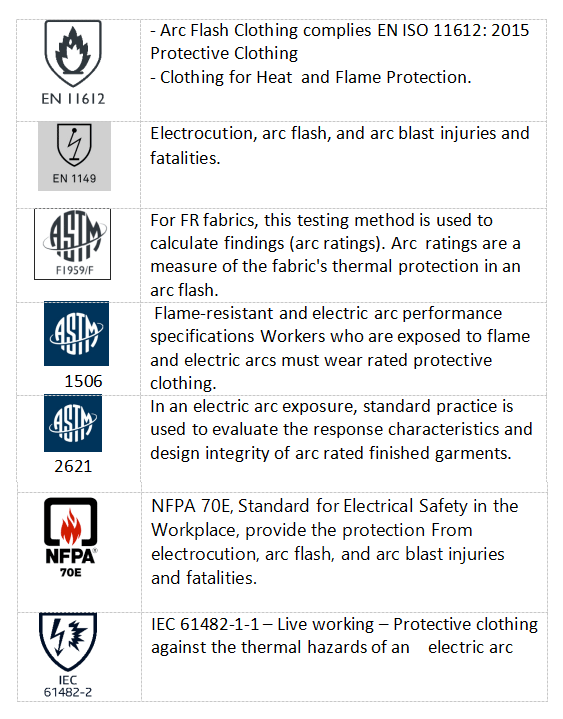

Tested & Certificate
• EN ISO 11612
• EN 1149
• EN IEC - 61482 -1
• ASTM 1506
• ASTM 1959
• ASTM 2621
• NFPA 70 E
Frequently Asked Questions
1. What is an Arc Flash Suit 40 Cal?
An Arc Flash Suit 40 Cal is specialized electrical protective clothing designed to help protect workers against the intense thermal energy generated during an arc flash incident. Its 40 cal/cm² rating should be considered alongside the workplace arc-flash risk assessment.
2. Where is an Arc Flash Suit 40 Cal used?
An Arc Flash Suit 40 Cal is used in electrical maintenance environments, including LT and HT panel maintenance, substations, power generation units, transmission line maintenance, and industrial electrical operations.
3. What is included in the Hicare Arc Flash Suit 40 Cal kit?
The Hicare Arc Flash Suit 40 Cal kit may include a jacket, bib trousers, a hood with helmet and visor, fabric gloves, and a storage bag. Please confirm the exact kit contents with Hicare Safety before placing an order.
4. How do I choose the right Arc Flash Suit 40 Cal?
Choose an arc flash protective suit based on a qualified electrical hazard assessment, the calculated incident energy, the required arc rating, garment fit, and compatibility with other personal protective equipment. A 40 Cal rating does not make a suit suitable for every electrical hazard.
5. How can I purchase an Arc Flash Suit 40 Cal from Hicare Safety?
You can contact Hicare Safety through its official website to request product specifications, available sizes, pricing, bulk order details, and delivery information for the Arc Flash Suit 40 Cal.
